CALVING PEN
Ranchers' Calving Pens are safe to use, built to last and very versatile. Our customers love all of the features that our Calving Pens have. You can use the Calving Pen for a maternity tub, AI use, crowding cows/calves and a sick animal pen.
​
-
Fully Sheeted
-
Removable Corner Post
-
Split Crowding Gates
-
Head Gate Mount
-
Standing Steel Floor Plate
-
Curved Side for Crowding
-
Side and Back Doors
-
Heavy Duty at 1650 lbs
-
Crowd Gate Locks Automatically
-
Portable or Folding Options Available
NURSING GATES NOW STANDARD ON BOTH SIDES OF THE COW!
Curved side for easy crowding.
Calving Pen opens up for easy access to animal.
You can take the Folding Calving Pen and slide it into your barn without having to take down any stalls. Slide it in, unfold it and use it just like the standard Calving Pen.
Curved side for easy crowding.
Ranchers Head Gate easily attaches to the Ranchers Calving Pen with 2 bolts. It is a self-catching Head Gate with forward release. You can use the Head Gate right or left handed and it has grease zerks on all hinge points. The top cross bar mechanism keeps the Head Gate in time with no cables or chains needed. The Head Gate has straight bars to eliminate choking.
HEAD GATE
The Removable Corner Post is a great feature for safety reasons.
You have full access to back of the cow with the Removable Corner Post. Nursing gate is now standard on both sides of the cow.
24' 4" BAR WINDBREAK PANEL
-
Lifting Bar now located on the top in the middle of the panel
-
Can be ordered with or without steel panels
-
Heavy Duty Windbreak Panels built to last
-
22g Super Steel Panels
-
7' tall on 10' legs
-
Legs are made of 2 3/8 pipe and are 10' long
-
Frame made up of 2 7/8 pipe
-
Link panels together with chain in a zigzag pattern to create a strong wind block in an open field. Legs are inset so you can make a 90 degree angle.
WINDBREAK AND SHADE PANELS
WINDBREAK SHADE PANELS
-
Multiple uses for one piece of equipment
-
Wind
-
Shade
-
Wind & Shade
-
Shelter
-
24' 10" long X 7' tall
FREE STANDING CORRAL PANELS
Heavy Duty Corral Panels are built to last. Depending on the length of the Corral Panel the weight varies between 880 lbs to 1000 lbs. You can use them temporarily in a space or leave them permanently. Each panel comes with its own set of legs and hinge sockets on each end for the addition of our gates. They each have double chain connection and 3/16" chain latch for a positive connection. The bars are made of 2 7/8 pipe and are spaced 9" apart. Square tube uprights provide vertical support. Square legs and sockets keep legs inline.
.jpg)
STANDARD PANEL SIZES
28' 5 BAR
24' 5 BAR
.jpg)
Each Corral Panel comes with it's own set of adjustable legs for use on uneven ground. The Corral Panel on legs is 62" tall. Leg sockets and stands are square tubing to eliminate legs turning under panel.
.jpg)
Our Gates and 360 Hinges work great with our Free Standing Corral Panels. The 360 Hinge allows your gate to swing either direction and flat against either side of your panel.
GATES & HINGES
Gates are heavy duty bare steel that won't bend or break with use. Our standard size gates are 4, 6, 8, 10, 12, 14 & 16 foot lengths. We can custom build any size that you need for your operation. Each gate is 53” tall and comes with 1 pin for mounting to our corral panels, 3/16” thick chain latch and 1/4” proof chain.
​
-
360 Degree Hinge option with gates
-
Threaded Hinges available for purchase
-
Use these to attach our gates to your fence post

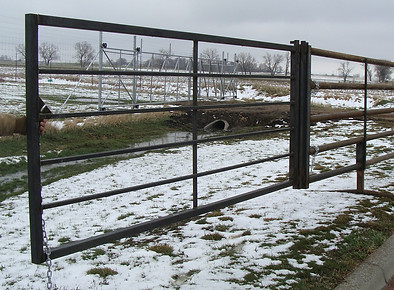

360 DEGREE HINGE
This is our original design allowing you the flexibility to open your gate either way and as far as you want it to go.
​
360 Degree Hinge lets gate swing either way flat against the Corral Panel.
CATTLE RUB
-
Comes with or without Mineral Barrel Holders
-
Mineral Barrel Holders are 24" in diameter
-
Mineral Barrel Holders are low to the ground for easy calf access
-
Sock not included with Cattle Rubs
-
Cattle Rub fits in most trailers for moving from pasture to pasture
CATTLE RUB & MINERAL BARREL HOLDER
Double Mineral Barrel Holder
Mineral Barrel Holders are low to the ground for easy calf access.
Stack for easy transportation.
Double Mineral Barrel Holder
Our Cattle Rub is an excellent way to keep flies and insects off of your cattle. You can use it year round by bringing it into your yards and the cattle will use it for scratching instead of your fences. We also offer a containment unit for your insecticides. By using the containment tank, you will only have to fill weekly instead of going out and wetting your sock everyday. Our Cattle Rub is built tough enough for Buffalo use and will last you for years to come. Each Cattle Rub has high and low sock connecting points for cattle and calf usage. All Cattle Rubs are built on skids with tow hooks for easy moving.
CONTAINMENT TANK
Our Containment Tank is built to save you time. You can fill it weekly and it will drip into your sock keeping it moist rather than going out and having to wet the sock daily. Cut a small hole in the sock for the hose to stick in, set your valve to your desired drip speed, fill your tank and you are done. So much easier than having to re-wet your whole sock every time. Saves time and money!
_JPG.jpg)
CATTLE RUB 13' LONG
CATTLE RUB W/DOUBLE MINERAL BARREL HOLDER 17' LONG
Our standard Portable Loading Chute has an 11' ramp, lower gate, retractable tongue, 3x3 support legs, heavy duty axle with 16" tires and rims and a left hand catwalk. Now with side trucker door.
LOADING CHUTES
Steel step design with added traction bars.
Steel step design with added traction bars.
We believe that a loading chute needs to be user and animal friendly. That is why we use the step floor for a ramp and include the catwalk on all loading chutes. All of our models feature a steel step design with added traction bars, fully sheeted sides, catwalk and lower gate. We have many options that you can choose from: Portable or stationary, with or without side load for stock trailers, with or without top platform. We can build you what you want and we won't skimp on materials in the process. We can custom build a loading chute to your specifications for your cattle business.
_JPG.jpg)
CALF SHELTERS
This shelter is built to be used with our windbreaks. It is tall like the windbreak with an angled front and a door for easy entry. This design will not allow the wind to blow through your windbreak like it does with the shorter calf shelters.
WINDBREAK
CALF SHELTERS
7' T X 8' D X 24' L
Portable to move from field to field or set it up permanently in your yard.
Most customers want their T&A a specific way for this reason they are usually custom built. Right now we have two standard T&A available. Call in and tell us how you want your T&A and we will get you a quote.
TUB & ALLEY
15' Tub 20' Alley
15' Tub and 20 Alley
15' Tub 20' Alley
15' TUB & 20' ALLEY
HYDRAULIC
TUB & ALLEY
The Bull Protector Pen is designed to give bulls that are being ridden or bullied a safe place to go. It is 10' x 10' x 5 1/2' tall. This has a top with all welds closed so the bulls will not cut themselves in the pen. It is built heavy duty to withstand any abuse the bulls might try to do to it. Simply place it along the perimeter of your bull yard and they will find it.
​
This is much cheaper than replacing a bull that gets hurt.
BULL PROTECTOR PEN
